The Bravo 201 motion detectors feature patented Multi-Level Signal Processing (MLSP) for accurate detection of human IR energy over a broad range of temperatures.
Exceptional catch performance at elevated temperatures
Sensitivity adjustment to configure the detector for normal or hostile environments
High-level static and transient protection
BV-201 Form ‘A’ alarm contact
BV-L1 Wall-to-Wall lens
BV-L2 Corridor lens
BV-L3 Curtain lens
BV-L4 Pet Alley lens
Bravo 201: Approval Listings: European CE Directives (EMC), UL/ULC
http://www.dsc.com
BRAVO6
Bravo PIR motion detector
Product Description: The Bravo6 is not only an exceptional
pet-immune detector, it also provides excellent
false alarm immunity in the harshest environments.
With its twin, dual-element PIR detectors,
unique lens and advanced digital signal
analysis, it provides accurate detection
while ignoring common false alarm situations,
including pets. The Bravo6 will exceed your
expectations for stability and performance.
Product Features:
Digital signal analysis for consistent
detection throughout the coverage pattern
Digital temperature compensation for
improved catch performance at critical
temperatures
Patented Multi-Level Signal Processing
(MLSP) for accurate detection of human
IR over a broad range of temperatures
Sensitivity adjustment to configure
the detector for normal or hostile environments
Product Description: The Bravo5 ceiling-mount motion
detector is perfect for those applications
where office partitions and furniture restrict
fields of view. From its’ vantage point,
it sees what other wall or corner mount
detectors can’t. In addition to features
found in the Bravo series PIRs, the Bravo5
uses an advanced quad-PIR element to provide
consistent detection regardless of the motion
direction. The Bravo5GB offers even more
security with its integrated glassbreak
detector, offering all the features of the
Acuity.
Signal analysis for consistent detection
throughout the coverage pattern
Temperature compensation for improved
catch performance at critical temperatures
Patented Multi-Level Signal Processing
(MLSP) for accurate detection of human
IR over a broad range of temperatures
Sensitivity adjustment to configure
the detector for normal or hostile environments
High level static and transient protection
Exceptional white light immunity
Excellent RF immunity
BV-500GB Combination PIR with glassbreak
detector
http://www.dsc.com
ENCORE
Encore PIR motion detector
Product Description: Swivel-Mount PIR
The Encore is a combination of proven DSC
patented detection technology and innovative
product design, created with alarm installers
in mind. This digital, microprocessorcontrolled
fresnel PIR delivers stable and accurate
detection without sacrificing catch performance.
The Encore housing and mounting bracket
(included) has been designed to provide
installers with the ultimate flexibility
in detector location and ease of installation.
The Encore swivel-mount PIR, providing versatility
and value.
Product Features:
Digital signal analysis for consistent
detection throughout the coverage pattern
Digital temperature compensation for
improved catch performance at critical
temperatures
Patented Multi-Level Signal Processing
(MLSP) provides more accurate detection
of human IR energy over a broad range
of temperatures
Vertical Beam Shaping (VBS) provides
pet immunity up to 60 lbs (27 kg) available
with EC300DP series
Swivel-mount bracket for the ultimate
in location and installation flexibility
Unique cover hinge allows unit to be
installed right up to the ceiling
Quick release PCB, no more screws to
lose
Concealed wiring channel simplifies
installation and hides wires
http://www.dsc.com
Force
2 Dual Technology
Motion detector
Product Description:
The Force2 combines two proven
motion detector technologies in one package,
the perfect integration of PIR and microwave.
Combining these two technologies provides
an entirely new level and discrimination
between intruders and potential false alarms.
The advanced and reliable PIR detector and
DRO microwave systems are designed to operate
as high quality motion detectors. The microprocessor
combines these technologies, using digital
PIR and microwave signal analysis, to provide
intelligence for eliminating ‘single detector’
false alarms.
Product Features:
Patented Multi-Level Signal Processing
(MLSP)
Digital microwave signal processing
DRO microwave technology for low current
and reliable operation
MOV transient/static protection • High
RF immunity with SMD construction
Exceptional white light immunity
Digital temperature compensation
Adjustable microwave detection pattern
to match room size
Acuity glassbreak
detectors have built-in
intelligence making them
‘smart’ enough to discern
the sound of breaking
glass from common sounds
found in homes and businesses.
With their high-performance
microphones and advanced
microprocessor-based Digital
Sound Analysis (DSA),
they can hear all types
of breaking framed glass
- plate, laminated, tempered
and safety - up to 25’
away. And with wall and
ceiling-mount models,
there’s an Acuity for
any application.
Product Features:
Exceptional microphone
frequency range provides
excellent sound capture
at low sound levels
and distances of up
to 25’ (7.6 m)
Jumper-selectable
sensitivity range
Digital signal processing
analyzes sound in remarkable
detail to provide greater
detector sensitivity
and immunity to false
alarms
High static and transient
protection includes
reliable MOV circuitry
Exceptional detection
of all common types
of framed glass including
plate, wired, tempered
and laminated
Detectors accommodate
changes in frame construction,
glass thickness and
room acoustics
http://www.dsc.com
LC-105DGB
Glassbreak Detector & Shock
Sensor
Product Description:
LC-105DGB belongs
to the new geenration
of glass breakage detectors.
The LC-105DGB can detect
glass cutting by diamond
in addition to the improved
detection of glass breakage.
This is achieved by our
new all-digital signal
processing. The LC-105DGB
offers the solution for
the false-alarms problem.
The LC-105DGB detects
the unique patterns of
sound emitted by breaking
or cutting glass. The
LC-105DGB does not hae
to be attached to the
window, providing volume
protection, and allows
the protection of several
windows using one detector.
LC-101CAM
PIR Motion Sensor with Pet Immunity
and Camera Option
Product Description:
A new generation
of professional movement
spread analyzing PIR detectos
with Mono / Colour Camera
Video sensing device
- High sensivicty and
high resolution board
camera. Electronic shutter
control.
Audio sensing device
- Omnidirectional response.
High sensity.
Product Features:
Led control
PIR sensivity adjustment
Pet immunity setting
Audio volume
Detection method: Quad
element PIR
Power input: 8.2 to 16Vdc
Current DrawMono 115mA
Colour 150mA
Warm up period: 1 min
Dimensions: 116mmx62.5mmx40mm
Weight: 110gr.
http://www.dsc.com
LC-100PI
PIR Detector with Pet Immunity
Product
Features:
Quad Linear Imaging
Technology for sharp
analysis of body dimensions
and differentiation
from background and
animals
Advanced ASIC design.Immunity
to Pets up to 25kg (55
lbs)Jumper selection
15kg – 25kg
BI directional temperature
compensation
18m Detection Range,
90°
Low current Draw (Standby
8mA, Alarm 10mA)
Variable pulse width
adjustment (3-levels)
Sensitivity adjustment
(68%- 84%- 100%)
“Calibration free”
Height install (1.8m–2.4m)
LED On-Off jumper
Cover Tamper and EOL
terminals
Environmental immunity
Operating Temp. -20°
to 60°C
http://www.dsc.com
LC-103-PIMSK-W
Anti-Mask PIR Detector with Pet Immunity
Product Description:
The LC-103-PIMSK-W is a dual-technology motion detector that combines passive infrared and microwave detection with pet immunity. LC-103-PIMSK-W also support anti-masking. The anti-masking feature prevents intruders from defeating the detector by covering its field of view.
Technical specifications:
Anti-masking (LC-103-PIMSK-W)
Form “A” alarm contact and tamper switch
Digital signal analysis
Pet immunity up to 55 lbs (25 kg)
Quad Linear Imaging Technology for sharp analysis of body dimensions and differentiation from backgrounds and pets
Microwave detection based on Doppler concept
Unique microwave motion sensor module with micro-strip patch antenna
User-friendly installation with or without swivel-mount bracket
http://www.dsc.com
NR30TD/NR60TD/NR90TD
Photoelectric Beam Detectors
Product Features:
Double modulated twin
beams achieve reliable
and stable operation
Easy alignment with
3 LED, Voltage out and
Scopes.
Range : 30m / 60m
/ 90m (Outdoor)
http://www.atsumielectric.com
LX-402/802N
Passive Infrared Outdoor Detectors
Product Description:
Optex's LX-402 and LX-802N
are ideal for Outdoor
annunciation, activation,
and automation applications.
Available in 40'x50' (120°)
or 80'x6' patterns, these
detectors feature special
UV resistant lenses and
casings for outdoor use.
LX Detectors also feature
an easy Pet Alley adjustment,
selectable sensitivity
and pulse count, extra
strong Sunlight &
RFI Immunity, built-in
photocell, and Form C
relay output.
VX-402 is suitable for
almost all outdoor applications
because it combines two
PIRs, creating extra high
immunity against false
alarms caused by small
animals, cars, and other
outdoor disturbances.
Easy wiring and a 90°
wide angle detection pattern
with 180° aiming are significant
advantages that VX-402
brings to outdoor security.
VX-402 also includes temperature
compensation circuitry,
high RFI and Sunlight
immunity, Form C relay,
adjustable photocell,
sequential logic circuit,
and many other features
for quality outdoor performance.
For increased flexibility,
the VX-402REC allows the
user to record a customized
voice message and play
it back whenever motion
is detected. By using
either the built-in microphone
or external recording
equipment such as a PC,
the VX-402REC can be easily
programmed in any language,
and is suitable for various
detection sequences, guaranteeing
the best voice message
for each application.
The VX-402R version is
a wireless, multi-stabilized
outdoor detector with
100 lb. pet immunity.
The VX-402R is compatible
with most manufacturers'
wireless technology and
comes with a weatherized
back box for easy installation.
This battery operated
detector, provides a 40ft.
by 40ft. detection pattern
and is completely weatherized
for direct exposure to
harsh weather conditions.
http://www.optexamerica.com
AX-70T/AX-130T
Photoelectric Detectors
Product Description:
Outdoor photoelectric
detectors with dual beams
for high immunity to false
alarms caused by falling
leaves, birds, blowing
debris, and other outdoor
hazards. AX-70T &
AX-130T also feature over
99% beam blockage tolerance,
adjustable beam interruption
period, automatic gain
control, and anti-frost
cover design. Easy installation
with view finder sights
and voltage meter alignment
jacks, (pole mount brackets
included).
http://www.optexamerica.com

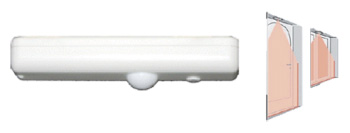

IF
15
Passive IR barrier
Product Features:
Creates a protection barrier type,
suitable for doors and windows
Anti-removal tamper switch
Led indicator (excludable)
ABS cover: WHITE or BROWN
Dimensions: H 145 x L 37 x D 23 mm
http://www.amcelettronica.com

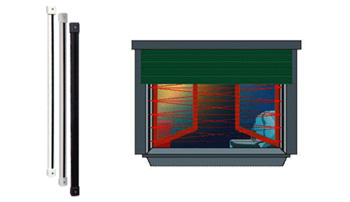

IB
Active IR barrier
Product Features:
Transmission of 26-digit codes (16 digits
are random) to avoid masking with fake
transmitters.
Optical transmission modulation at 36
KHz and opaque polycarbonate filter to
avoid disturbance by natural or artificial
light.
Optical synchronization between transmitter
and receiver without additional connections.
Control of oblique rays to avoid false
alarms due to insects or small objects
placed between transmitter and receiver.
Possibility to exclude the lower ray
to allow small pets to pass through.
Possibility to increase the sensibility
selecting the alarm mode signalling with
single violation.
Magnetic anti-opening and anti-removal
selectable.
Alarm output by means of a solid state
relay.
LED indication of the reception quality.
Buzzer selectable.
Range (distance between transmitter
and receiver) adjustable between 0,5m
and 10m.
Distance between the rays: 25cm.
Power supply: 12Vdc.
All settings are selectable using dip-switches.
IB 500/B ALUMINUM
IB 500/B WHITE
IB 500/M BROWN
2 rays, dimensions: 530 x 19 x 25 mm,
max current absorption 40 mA
IB 1000/B ALUMINUM
IB 1000/B WHITE
IB 1000/M BROWN
4 rays, dimensions: 995 x 19 x 25 mm,
max current absorption 50 mA
IB 1500/B ALUMINUM
IB 1500/B WHITE
IB 1500/M BROWN
6 rays, dimensions: 1460 x 19 x 25 mm,
max current absorption 60 mA
IB 2000/B ALUMINUM
IB 2000/B WHITE
IB 2000/M BROWN
8 rays, dimensions: 1925 x 19 x 25 mm,
max current absorption 60 mA
http://www.amcelettronica.com
Industrial LuNAR G3
Ceiling motion detector
Product Description:
As the only ceiling mount detector with Anti-Cloak™ Technology, it detects intruder camouflage attempts and delivers the highest performance level - even at high warehouse temperatures. The Industrial LuNAR G3 provides superior and more secure coverage compared to industrial wall-mount detectors.
Industrial LuNAR G3 can be remotely diagnosed and controlled via ProSYS upload/download software or via a Bi-Directional Remote Control
Product Features:
•Addressable Dual Technology detector with Anti-Cloak™ Technology
• Up to 8.6 m (28’) mounting height
• 3600 by 22m (72’) diameter coverage pattern
• 3 independentaly adjustable PIR channels for customized coverage
• Active IR Ani-Mask on all three lences
• GreenLine for disabling the MW during disarm
• 3 tri-color LEDs for easy walk testing
• Remote Control and diagnostics via ProSYS upload/download software or via a Bi-directional Remote Control
• Built-in EOL resistros, jumper selectable
http://www.riscogroup.com
ViTRON PLUS Glassbrake detector
Product Description:
The ViTRON PLUS detector features advanced electronics and extra-handsome looks in wall/ceiling or flush-mount design. ViTRON PLUS microprocessor-based Glass-Break pattern analysis assures detection reliability and prevents false alarms. Full remote test makes testing easy. Simple to install, the ViTRON PLUS is elegantly designed to blend into any decor. Flush (single gang box/Gewiss), wall or ceiling mount
Product Features:
• Protection of all glass types: plate, tempered, laminated and wired
• Omni-directional microphone
• Full remote testing without opening unit
• 4.5m/15 ft and 9m/30 ft ranges
• Memory (latch) indication
• Dead microphone supervision
http://www.riscogroup.com
WatchOUT DT Outdoor motion detector
Product Description:
WatchOUT provides selective event recognition utilizing:
Sway Recognition Technology that uses 2 MW channels to recognize and exclude objects that sway, such as bushes and tree limbs.
Digital Correlation Technology that uses 2 PIR channels with interlacing detection patterns. Only targets creating a similar and correlated signal in both PIR channels are taken into account.
Product Features:
• Sway Recognition Technology for recognizing and eliminating targets that sway but don’t move more than a set distance (bushes, tree limbs, etc.)
• Digital Correlation Technology for eliminating false alarms from pets, reflections and rapid temperature changes
• 1.0m to 2.7m installation height
• A wide range of swivels for wall, pole, or barrier application
• Active IR anti-mask and anti-vandal wire protection for all brackets
• IP65 environment rating
• Extensive remote control and diagnostics when installed with RISCO Group’s ProSYS Integrated Security System
• 4 active IR channels for Anti-Mask and “dirty lens” alerts
• Protective shielding for blocking out white light, allowing only IR energy to reach PIR sensors
• Hood - provides protection from sun, rain, snow, hail and birds
http://www.riscogroup.com
ShockTec Shock sensor
Product Description:
The ShockTec detectors have a reliable built-in calibration method that prevents over or under sensitive settings.
Intelligent Digital Signal Processing discriminates between real attacks and natural background vibrations by analysing the vibration signal’s frequency, energy, amplitude and duration.
Product Features:
• Tri-color LED enables accurate and reliable calibration, with “over- sensitive” and “under-sensitive” indications
• Mounts on frame or glass, vertically or horizontally
• Dual stage adjustment potentiometer
• Encapsulated piezo-electric sensor
• Cover tamper protection
• Modern design with ample wiring space and hermetic wiring seal
